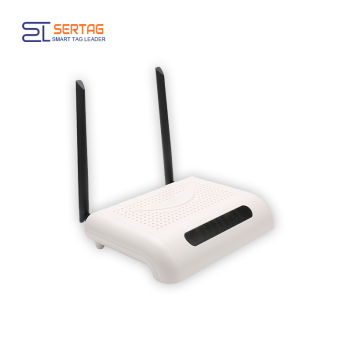

Put to Light Systems Self-contained Server Pick-to-Light Hardware Base Station SETP_Router_V1.4

group name: Pick to Light Base Station

Min Order: 1 piece

brand name: Sertag Pick to Light System Manufacturer

model: Pick to light Base Station SETP_Router_V1.4

Nearest port for product export: Dalian, Shenzhen, Hongkong

Delivery clauses under the trade mode: FOB, CIF

Acceptable payment methods: T/T

update time: Thu, 21 Nov 2024 16:39:30 GMT

contact supplier

Paramtents

Network 1
The antenna 2
Size 21*14*4.3cm
Access Web access
Software Update yes
Communication mode 868M, RJ45

Packging & Delivery

Min Order1 piece

Briefing

Meet SETP_Router_V1.4, the server-inclusive base station revolutionizing pick to light solutions.

Detailed

Put to Light Systems Self-contained Server Base Station SETP_Router_V1.4 Description

Introducing SETP_Router_V1.4, as the base station for all pick-to-light models, this iteration stands out with its self-sufficiency. Unlike its counterpart, the SETP_Router_V1.2, it doesn't require an external server; instead, it comes equipped with a built-in server program. This innovative design streamlines user interactions, requiring only direct instruction input for data transfer, ensuring unparalleled ease of use.

This base station boasts a wireless communication range spanning 20-30m, supporting the operational needs of over 10,000 pick-to-light products. Its self-contained server program simplifies the user experience, minimizing setup complexities and maximizing operational efficiency.

Put to Light Systems Self-contained Server Base Station SETP_Router_V1.4 Specification

Model	SETP_ Router_V1.4
Network	1
The Antenna	2
Communication Mode	868M, RJ45
Power Supply	DC 12V 1A or POE
Size	21144.3cm
Operating System	linux
Working Temperature	-10~70℃
Wireless Distance	Radius 20-30m
Number of Pick to Light Labels	>10000
Software Update	Yes
Access	Web access
Server	Built in: webserver: Tomcat Server system: JAVA Database: Mysql Router
Service Interface Protocol	Http, Data format：Json

Pick to light Base Station SETP_Router_V1.4 Workflow

The workflow of SETP_Router_V1.4 is a testament to its user-friendly design. Users simply need to send operational instructions directly to this base station, facilitating seamless data transfer. This unique feature eliminates the need for external servers, reducing setup hassles and streamlining the process for swift and efficient operations.

Put to Light Systems Self-contained Server Base Station SETP_Router_V1.4 Download

SETP_Router_V1.4 Operate Steps
