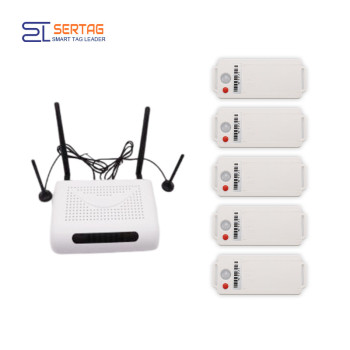

Put by Light System Demo Kit, PTL System Router, No Screen Pick to Light Wireless Digital Label
- group name
- Test Kits
- Min Order
- 1 piece
- brand name
- Sertag Pick to Light System Manufacturer
- model
- Put by Light Demo Kit with SETP_Label_V11(Battery Powered)
- Nearest port for product export
- Dalian, Shenzhen, Hongkong
- Delivery clauses under the trade mode
- FOB, CIF
- Acceptable payment methods
- T/T
- update time
- Tue, 04 Nov 2025 19:54:41 GMT
Paramtents
Screen No Screen
Server Built in
Software Update Yes
Working Temperature 0~50℃
Indicator Light 1 RGB Light
Battery Button battery pack 2200mAh(CR2477*2)
Application Factory, Warehouse, E-commerce, Logistics...
Packging & Delivery
-
Min Order1 piece
Briefing
Pick to light system, built-in server base station and no screen battery powered picking labels, for smart warehouse picking.
Detailed
Put by Light System Demo Kit, PTL System Router, No Screen Pick to Light Wireless Digital Label
This Pick to Light series electronic label SETP_Label_V11 offers two variants, one with and one without a confirmation button, tailored to meet varying operational needs. Embracing a battery-powered design, this solution incorporates a plug-in button battery pack, ensuring not only ease of replacement but also a robust connection for sustained performance. The thoughtfully designed front battery compartment cover streamlines maintenance, simplifying battery replacements for uninterrupted operations.
SETP_Router_V1.4 serves as the central hub in our Pick by Light series. Equipped with a built-in server program, this base station streamlines data transfer. Users can effortlessly input commands for seamless communication during operations.
|
Product Model
|
Button
|
1
|
|
Dimension | 95.8x39.8x12.8mm | Indicator Light | 1 RGB Light |
Case Color | White | Power Supply | Batteries |
|
Battery
|
Button battery pack 2200mAh(CR2477*2)
|
Communication Mode
|
Wireless
|
|
Working Temperature
|
0~50℃
|
Operating Frequency
|
868MHz
|
|
Wireless Firmware Update
|
Yes
|
Battery Lifetime
|
＞1.5 years(10 times per day)
|
|
Product Model
|
Network
|
1
|
|
|
The Antenna
|
2
|
Communication Mode
|
868M, RJ45
|
|
Power Supply
|
DC 12V 1A or POE
|
Size
|
21*14*4.3cm
|
|
Operating System
|
linux
|
Working Temperature
|
-10~70℃
|
Wireless Distance | Radius 20-30m | Software Update | Yes |
Number of Pick to Light Labels | >10000 | Server | Built in:
webserver: Tomcat
Server system: JAVA
Database: Mysql
Router |
Access | Web access | Service Interface Protocol | Http, Data format：Json |
Put by Light Demo Kit with SETP_Label_V11(Battery Powered) Including
① Pick to light system built-in server Base Station SETP_Router_V1.4
② 5 * Pick to Light series electronic label SETP_Label_V11 (Battery Powered)
Put by Light System Demo Kit Working Principle
The SETP_Router_V1.4 serves as the central hub, hosting a built-in server program for seamless data transmission. Users send operational commands to the base station, which relays instructions to the SETP_Label_V11 units.
Put by Light Demo Kit with SETP_Label_V11(Battery Powered) Document Download
Put by Light System Demo Kit Advantage
Mobility and Portability
Compact design allows for easy movement and swift installation in dynamic warehouse environments.
Battery-Powered Efficiency:
Utilizes a plug-in button battery pack for a robust and easily replaceable power source.
Built-in Server Program
Equipped with a built-in server program, the router eliminates the need for external servers, simplifying the setup and reducing dependency on additional hardware.
Efficient Data Transfer
The router facilitates efficient and reliable data transfer between devices, ensuring real-time communication and enhancing overall operational efficiency.
Put by Light System Demo Kit Application
