2.9inch Logistics Put to Light E-ink Paperless Order Picking PTL Systems with Buttons and Lights
- group name
- Pick to Light Electronic Label
- Min Order
- 1 piece
- brand name
- Sertag Pick to Light System Manufacturer
- model
- Pick-to-Light SETP_Label_V23 (External Power Supply)
- Nearest port for product export
- Dalian, Shenzhen, Hongkong
- Delivery clauses under the trade mode
- FOB, CIF
- Acceptable payment methods
- T/T
- update time
- Tue, 04 Nov 2025 19:52:55 GMT
Paramtents
Display Technology Full Graphic E ink Display
Dimension 156x48x14.7mm
Resolution 296x128
Power Supply DC 24V
Working Temperature 0~50℃
Button 4 Buttons
Indicator Light 4 RGB Lights
Communication Mode Wireless
Packging & Delivery
-
Min Order1 piece
Briefing
Put by light system, e-paper screen, 4 buttons, 4 indicator lights, supports text/picture/barcode/QRcode, for smart warehouse.
Detailed

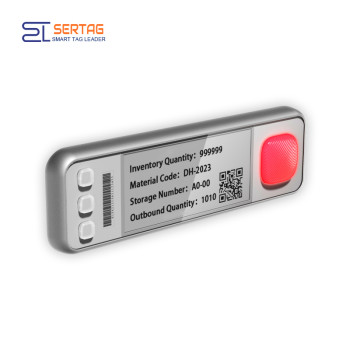

Put by Light System E-paper Screen SETP_Label_V23 (External Power Supply) Description
2.9inch Logistics Put to Light E-ink Screen Paperless Order Picking PTL Systems with Buttons and Color Lights
The SETP_Label_V23 (External Power Supply), is an innovative addition to our pick-to-light series. This Put to Light electronic label boasts a 2.9-inch e-paper display, with features of ultra-low power consumption, swift response to commands, and seamless screen refresh without any flickering. Operating on a 24V external power supply, this system integrates four buttons, with the prominent right button doubling as an illuminating feature for ease of use.
The hallmark of SETP_Label_V23 lies in its ability to redefine efficiency in pick-to-light systems. The 2.9-inch e-paper display ensures faster response times and effortless screen refreshes, enhancing operational agility. With its user-friendly interface and superior performance in response, this system optimizes workflow management, delivering unparalleled precision in put-to-light operations.
Put by Light System E-paper Screen SETP_Label_V23 (External Power Supply) Parameter
Product Mode | SETP_Label_V23(External Power Supply) |
Button
|
4 Buttons
|
Dimension | 156x48x14.7mm | Indicator Light | 4 RGB Lights |
Screen Size | 2.9 inch | Working Temperature | 0~50℃ |
Resolution | 296x128 | Operating Frequency | 868MHz |
Pixel Denstiy | 112dpi | Viewing Angle | Nearly 180° |
Display Technology | Full Graphic E-ink Display | Displayable Content | Text/Picture/Barcode/QRcode |
Pixel Color | Black&White |
Power Supply
|
DC 24V
|
Case Color | White |
Communication Mode
|
Wireless
|
Wireless Firmware Update | Yes |
Template Design DIY
|
Yes
|
Put by Light System E-paper Screen SETP_Label_V23 Installation Method
The SETP_Label_V23(External Power Supply) offers three convenient installation methods to adapt to diverse environments:
① Adhesive fixation for swift deployment
② Magnetic fixation for effortless repositioning
③ Track slot fixation (can be customized)
The Base Stations of Pick to Light
Recommend！
Features: Equipped with a built-in server program for effortless data transmission.
Ease of Use: Users simply send operational instructions directly to this base station for efficient data transfer, ensuring user-friendly functionality.
Functionality: Facilitates instruction transmission via PC or scanner.
Operation: Functions by relaying instructions from the PC or scanner through the SETP_Router_V1.2 base station to control LED lights/screens on the pick-to-light system.
Put by Light System E-paper Screen SETP_Label_V23 Document Download
Put by Light System E-paper Screen SETP_Label_V23 (External Power Supply) Advantage
Advanced E-Paper Display: Swift and flicker-free, guaranteeing rapid response times and superior readability.
Efficient Power Consumption: Ultra-low power usage ensures prolonged usage without compromising performance.
User-Friendly Interface: Equipped with four buttons, including a brilliantly lit function button for intuitive operations.
Enhanced Performance: Rapid command response and seamless screen refresh redefine pick-to-light efficiency.
Put by Light System Application
