Pick to Light in Warehouse System Streamlined Picking Efficiency with Buzzer, No Screen, Low Power
- group name
- Pick to Light Electronic Label
- Min Order
- 1 piece
- brand name
- Sertag Pick to Light System Manufacturer
- model
- Pick to Light SETP_Label_V1(External Power Supply)
- Nearest port for product export
- Dalian, Shenzhen, Hongkong
- Delivery clauses under the trade mode
- FOB, CIF
- Acceptable payment methods
- T/T
- update time
- Thu, 21 Nov 2024 14:58:28 GMT
Paramtents
Size 37*65*33.7mm
Button 1 Button
Indicator Light 1 RGB Light
Power Supply DC 24V
Working Temperature 0~50℃
Communication Mode Wireless
Application Factory, Warehouse, E-commerce, Logistics...
Packging & Delivery
-
Min Order1 piece
Briefing
Pick to Light series, 1 button and 1 RGB light, DC 24V, no screen, with buzzer, suitable for pick and put warehouse.
Detailed
Pick to Light SETP_Label_V1(External Power Supply) Description
Pick to Light Smart Warehouse Management System Streamlined Order Picking Efficiency
Introducing the SETP_Label_V1(External Power Supply), a groundbreaking addition to the pick-to-light series. Unlike traditional displays, this innovative system focuses on efficiency through audio-visual cues. It features a buzzer sound prompt function, a super large light, and a round button, offering intuitive and immediate guidance for order picking tasks. Operating on a 24V external power supply, this system boasts ultra-low power consumption, ensuring uninterrupted operation for up to 2 years. Despite the absence of a screen, its design prioritizes streamlined functionality, setting new benchmarks for order picking technology.
The SETP_Label_V1(External Power Supply)'s emphasis on audio-visual cues rather than a screen-based display signifies a paradigm shift in order picking technology, offering straightforward and efficient solutions for order fulfillment processes.
Pick to Light Smart Warehouse Management System SETP_Label_V1(External Power Supply) Specification
|
Model
|
SETP_Label_V1(External Power Supply)
|
Working Temperature
|
0~50℃
|
|
Dimensions
|
37x65x33.7mm
|
Operating Frequency
|
868MHz
|
Button | 1 Button | Wireless Firmware Update | Yes |
Indicator Light | 1 RGB Light | Prompt Function | Buzzer |
|
Power Supply
|
DC 24V
|
Communication Mode
|
Wireless
|
Pick to Light Smart Warehouse Management System SETP_Label_V1 Installation Method
The Pick to Light SETP_Label_V1(External Power Supply) offers flexible installation options, allowing for effortless mounting via Velcro or magnetic suction, facilitating swift deployment and adaptation to evolving operational needs.
Mounting via Velcro
Magnetic fixation for effortless repositioning
Purchasing Guide for the Base Stations of Pick-to-Light SETP_Label_V1(External Power Supply)
Recommend！
Features: Equipped with a built-in server program for effortless data transmission.
Ease of Use: Users simply send operational instructions directly to this base station for efficient data transfer, ensuring user-friendly functionality.
Functionality: Facilitates instruction transmission via PC or scanner.

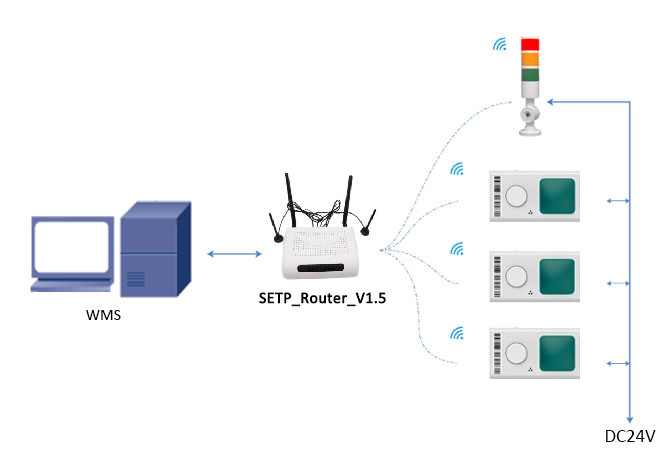

Operation: Functions by relaying instructions from the PC or scanner through the SETP_Router_V1.2 base station to control LED lights/screens on the pick-to-light system.
Pick to Light Smart Warehouse Management System SETP_Label_V1 Download
Pick to Light Smart Warehouse Management System SETP_Label_V1(External Power Supply) Advantage
Audio-Visual Guidance: Buzzer sound prompts and a super large light for clear order picking cues.
Intuitive Interface: Round button for easy and intuitive operation.
Efficient Power Usage: Ultra-low power consumption enables continuous use for up to 2 years.
Reliable Power Supply: Operates seamlessly on a 24V external power source, ensuring consistent performance.
Pick to Light Smart Warehouse Management System Application
