Pick by Light Hardware and Software, Pick Light Router, Digital Picking Labels Demo Kit
- group name
- Test Kits
- Min Order
- 1 piece
- brand name
- Sertag Pick to Light System Manufacturer
- model
- Pick by Light Demo Kit with SETP_Label_V13(Battery Powered)
- Nearest port for product export
- Dalian, Shenzhen, Hongkong
- Delivery clauses under the trade mode
- FOB, CIF
- Acceptable payment methods
- T/T
- update time
- Tue, 04 Nov 2025 19:52:59 GMT
Paramtents
Display Technology Full Graphic E ink Display
Server Built in
Button 1 Button
Indicator Light 1 RGB Lights
Power Supply of Pick to Light Batteries
Feature It can display text and pictures, low power
Application Factory, Warehouse, E-commerce, Logistics...
Packging & Delivery
-
Min Order1 piece
Briefing
Pick by light solution, built-in server base station and 2.1 inch e-ink battery powered picking labels, for warehouse picking.
Detailed
Pick by Light Hardware and Software, Pick Light Router, Digital Picking Labels Demo Kit
SETP_Label_V13 is a standout product in our Pick by Light series. This advanced system boasts a 2.1-inch epaper display, harnessing the benefits of eink technology, including remarkably low power consumption and an expansive viewing angle of nearly 180 degrees. The display is capable of showcasing text, images, barcodes, and QR codes, providing versatile applications. Powered by a coin cell battery, its minimalist design incorporates a single button alongside an RGB indicator light, providing intuitive functionality.
SETP_Router_V1.4 serves as the central hub in our Pick by Light series. Equipped with a built-in server program, this base station streamlines data transfer. Users can effortlessly input commands for seamless communication during operations.

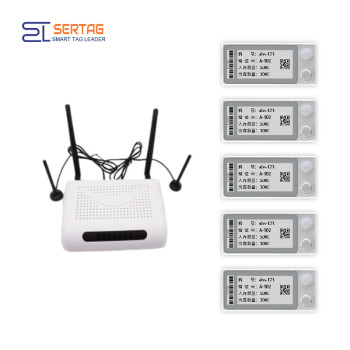

Pick by Light Demo Kit with SETP_Label_V13(Battery Powered) Including
① Pick by light system built-in server Base Station SETP_Router_V1.4
② 5 * warehouse electronic label SETP_Label_V13 (Battery Powered)
|
Product Model
|
Button
|
1 Button
|
|
Dimension | 70x34.7x13.6mm | Indicator Light | 1 RGB Light |
Screen Size | 2.1 inch | Working Temperature | 0~50℃ |
Resolution | 250x122 | Operating Frequency | 868MHz |
Pixel Density | 130dpi | Viewing Angle | Nearly 180° |
Display Technology | Full Graphic E-ink Display | Displayable Content | Text/Picture/Barcode/QRcode |
Pixel Color | Black&White | Power Supply | Battery Power |
|
Case Color
|
Black or white
|
Battery
|
2200mAh(CR2477*2), Replaceable
|
|
Battery Lifetime
|
＞2 years (10 times per day)
|
Communication Mode
|
Wireless
|
|
Wireless Firmware Update
|
Yes
|
Template Design DIY
|
Yes
|
|
Product Model
|
Network
|
1
|
|
|
The Antenna
|
2
|
Communication Mode
|
868M, RJ45
|
|
Power Supply
|
DC 12V 1A or POE
|
Size
|
21*14*4.3cm
|
Operating System | linux | Working Temperature | -10~70℃ |
Wireless Distance | Radius 20-30m | Software Update | Yes |
Number of Pick to Light Labels | >10000 | Server | Built in:
webserver: Tomcat
Server system: JAVA
Database: Mysql
Router |
|
Access
|
Web access
|
Service Interface Protocol
|
Http, Data format：Json
|
Pick by Light Digital Picking Labels Demo Kit Working Principle
The SETP_Router_V1.4 serves as the central hub, hosting a built-in server program for seamless data transmission. Users send operational commands to the base station, which relays instructions to the SETP_Label_V13 units.
Pick by Light Demo Kit with SETP_Label_V13(Battery Powered) Document Download
Pick by Light Digital Picking Labels Demo Kit Advantage
Efficient Display Technology
The 2.1-inch e-paper display with a resolution of 250x122 ensures clear and sharp visuals, facilitating easy interpretation of information.
Low Power Consumption
Designed with low power consumption in mind, SETP_Label_V13 maximizes the lifespan of the coin cell battery, ensuring prolonged usage before requiring a replacement.
Wide Viewing Angle
With a 180° viewing angle, the display remains easily readable from different perspectives, enhancing visibility and usability.
Built-in Server Program
Equipped with a built-in server program, the router eliminates the need for external servers, simplifying the setup and reducing dependency on additional hardware.
Efficient Data Transfer
The router facilitates efficient and reliable data transfer between devices, ensuring real-time communication and enhancing overall operational efficiency.
Pick by Light Digital Picking Labels Application
