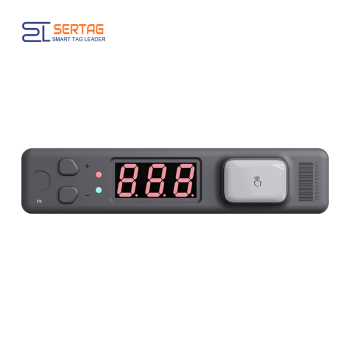

Pick to Light Label with 3-Digit Tube Display and 7-Color Light Button
- group name
- Pick to Light Electronic Label
- Min Order
- 1 piece
- brand name
- Sertag Pick to Light System Manufacturer
- model
- PTL Label SETP_Label_V40
- Nearest port for product export
- Dalian, Shenzhen, Hongkong
- Delivery clauses under the trade mode
- FOB, CIF
- Acceptable payment methods
- T/T
- update time
- Wed, 10 Jun 2026 06:24:30 GMT
Paramtents
Screen Digital tube display (3-digit 0.4 inch)
Digital Tube Color red
Display Content 0-999
Key Press 3
Communication Wireless
Working Temperature -30~80 ℃
Packging & Delivery
-
Min Order1 piece
Briefing
0.4-inch 3-digit Pick to Light label with 7-color LED button, multi-key control, and DC24V power supply.
Detailed
Pick to Light Label with 3-Digit Tube Display and 7-Color Light Button Description

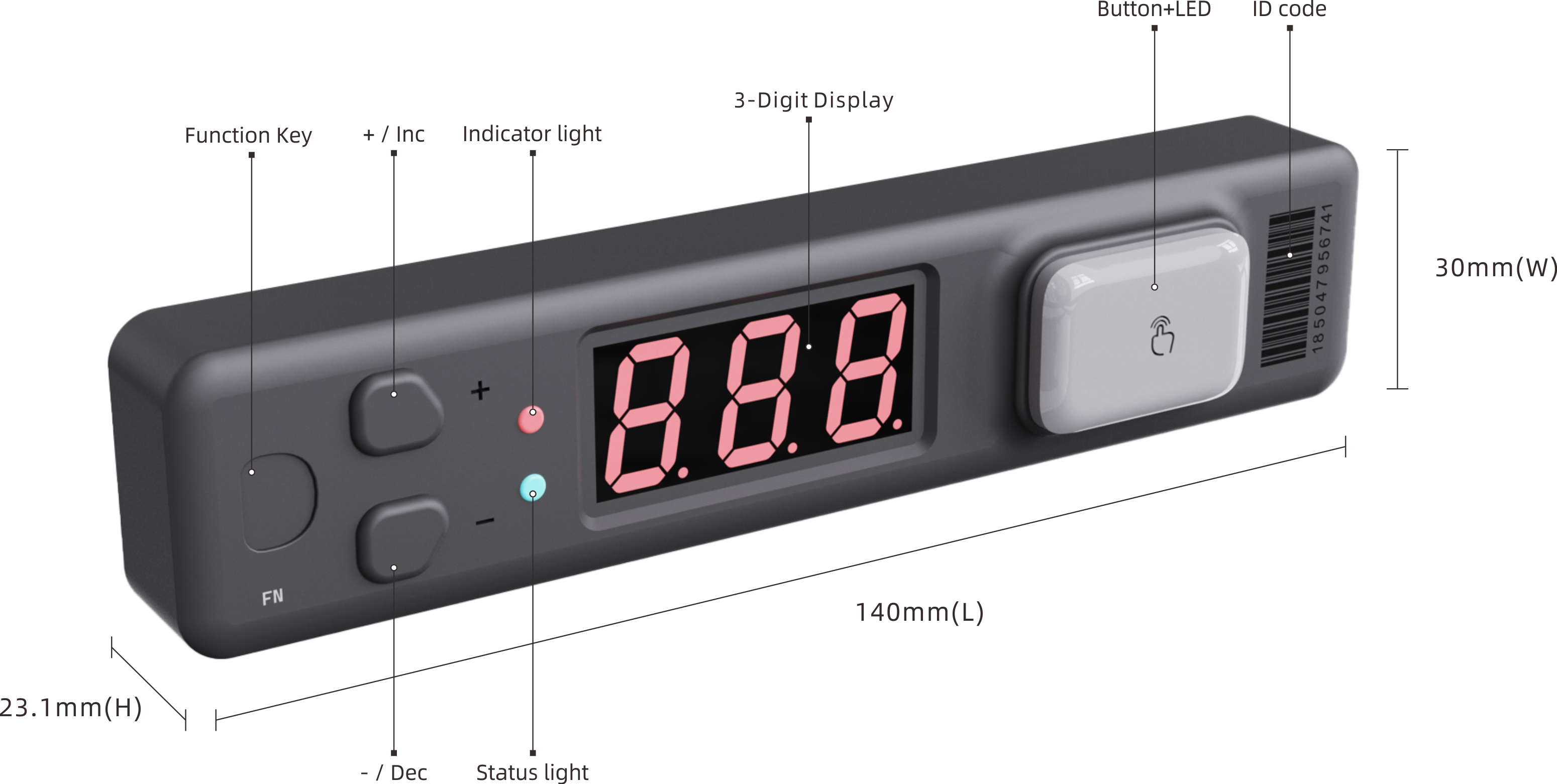

3-Digit Tube Display Pick to Light Label
The SETP_Label_V40 is a compact and durable Pick to Light electronic label designed for warehouse picking, logistics distribution, manufacturing, and inventory management applications. Equipped with a 0.4-inch 3-digit red digital display, the device clearly shows picking quantities to improve picking accuracy and efficiency.
The Pick to Light label features three function buttons and one illuminated confirmation button with seven selectable LED colors, including red, green, blue, yellow, purple, white, and light blue. Different light colors can be used to distinguish picking tasks, order priorities, work zones, or operational statuses, helping operators quickly identify the correct picking position.
The Pick to Light system operates through instructions sent from a PC or barcode scanner. Signals are forwarded through the router to control the LED lights and display content on the electronic picking labels, guiding workers quickly and accurately to the target shelf location for efficient order fulfillment.
The PTL label also includes two LED indicators: a power indicator and a Pick-to-Light status indicator, allowing users to easily monitor device operation and communication status.
Why Choose This 3-Digit Tube Display Pick to Light Label?
● 7-Color Illuminated Confirmation Button
Supports red, green, blue, yellow, purple, white, and light blue LED colors for flexible visual task management.
● Multiple Function Buttons
Includes three operational buttons and one lighted confirmation button for efficient worker interaction during picking tasks.
● High Picking Accuracy
Visual guidance helps operators quickly locate products and reduce picking errors in warehouse operations.
● Real-Time System Communication
Receives commands from PC software or barcode scanners through the router for synchronized picking operations.
● Flexible Installation Options
Supports both bracket mounting and rail mounting to fit different warehouse and production line environments.
How the Pick to Light System Works ?
Initial: Set the server and label parameters
------------------------------------------------------------
Step 1: Send the information to the put to light label server
Step 2: The server parses the command requirements and wirelessly lights up the tower lights and put to light label.
Step 3: Pick items according to the illuminated label and press the confirmation button to turn off the light, and the screen content is updated with the result after the operation.
This allows it to receive button feedback from the Pick to Light electronic labels while sending data to them.
Features: Equipped with a built-in server program for effortless data transmission.
Ease of Use: Users simply send operational instructions directly to this base station for efficient data transfer, ensuring user-friendly functionality.
3-Digit Tube Display Pick to Light Label Installation Method
Bracket + Cable Tie Mounting
The Pick to Light label can be installed using a mounting bracket combined with cable ties. The bracket can be fixed to shelves using screws or cable ties, while the PTL label can be securely attached to steel pipes or warehouse rack structures using cable ties. This installation method is flexible and suitable for various warehouse layouts.
Rail Mounting
The device also supports rail installation for organized and scalable deployment. Rail mounting allows fast installation, convenient maintenance, and easy adjustment of label positions in dynamic warehouse environments.
Pick by Light Application
