Paperless Order Picking Solution Pick to Light Technology (External Power Supply)
- group name
- Test Kits
- Min Order
- 1 piece
- brand name
- Sertag Pick to Light System Manufacturer
- model
- Pick to Light Demo Kit (External Power Supply)
- Nearest port for product export
- Dalian, Shenzhen, Hongkong
- Delivery clauses under the trade mode
- FOB, CIF
- Acceptable payment methods
- T/T
- update time
- Tue, 04 Nov 2025 19:52:21 GMT
Paramtents
Display Technology Full Graphic E ink Display
Server Built in
Power Supply of Pick to Light External Power Supply
Feature It can display text and pictures, low power
Application Factory, Warehouse, E-commerce, Logistics...
Packging & Delivery
-
Min Order1 piece
Briefing
Pick by light solution, built-in server base station and e-ink picking labels, for warehouse, factory, logistics and so on.
Detailed
Paperless Order Picking Solution Pick to Light Technology (External Power Supply)
This pick to light kit includes a base station with an integrated server and four e-paper pick-to-light labels, along with a button-light integrated picking label that has no screen, powered by an external 24V supply. This system supports real-time content updates and seamless integration with warehouse management software (WMS).
During the picking process, the system lights up the corresponding label on products or shelves, guiding operators to the correct items. The e-paper displays offer exceptionally low power consumption, surpassing LCD and other screens, ensuring long-term, eco-friendly operation.
SETP_Router_V1.4 serves as the central hub in our Pick by Light series. Equipped with a built-in server program, this base station streamlines data transfer. Users can effortlessly input commands for seamless communication during operations.
Ideal for improving accuracy and speeding up picking operations, this kit is a powerful tool for warehouses aiming for operational excellence.

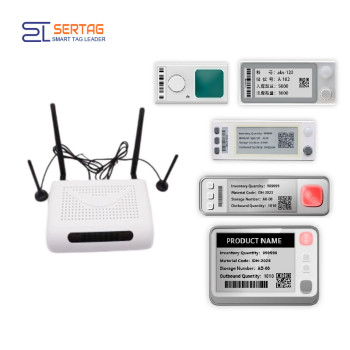

Pick to Light Demo Kit Including
② NO SCREEN PTL System electronic label SETP_Label_V1 (External Power Supply)
③ 2.9 inch e-ink screen electronic label for PTL System SETP_Label_V3 (External Power Supply)
④ 2.13 inch e-ink screen electronic label for PTL System SETP_Label_V13 (External Power Supply)
⑤ 2.9 inch e-ink screen electronic label for PTL System SETP_Label_V23 (External Power Supply)
⑥ 4.2 inch e-ink screen electronic label for PTL System SETP_Label_V24 (*This PTL electronic label only has battery powered version.)
⑦ 24V power adapter
⑧ Extension cable, can be connected to 30cm.
⑨ Extension cable, 4 pin, can be connected to 30cm.
⑩ Extension cable, connect the DC power supply.
|
Product Model
|
SETP_ Router_V1.4
|
Network
|
1
|
|
The Antenna
|
2
|
Communication Mode
|
868M, RJ45
|
|
Power Supply
|
DC 12V 1A or POE
|
Size
|
21*14*4.3cm
|
Operating System | linux | Working Temperature | -10~70℃ |
Wireless Distance | Radius 20-30m | Software Update | Yes |
Number of Pick to Light Labels | >10000 | Server | Built in:
webserver: Tomcat
Server system: JAVA
Database: Mysql
Router |
|
Access
|
Web access
|
Service Interface Protocol
|
Http, Data format：Json
|
Pick by Light Digital Picking Labels Demo Kit Working Principle
The SETP_Router_V1.4 serves as the central hub, hosting a built-in server program for seamless data transmission. Users send operational commands to the base station, which relays instructions to the PTL warehoue labels units.
Pick by Light Demo Kit Document Download
Pick by Light Digital Picking Labels Demo Kit Advantage
Low Power Consumption
Designed with low power consumption in mind, the pick to light label maximizes the lifespan of the coin cell battery, ensuring prolonged usage before requiring a replacement.
Wide Viewing Angle
With a 180° viewing angle, the display remains easily readable from different perspectives, enhancing visibility and usability.
Built-in Server Program
Equipped with a built-in server program, the router eliminates the need for external servers, simplifying the setup and reducing dependency on additional hardware.
Efficient Data Transfer
The router facilitates efficient and reliable data transfer between devices, ensuring real-time communication and enhancing overall operational efficiency.
Pick to Light Electronic Label Application
